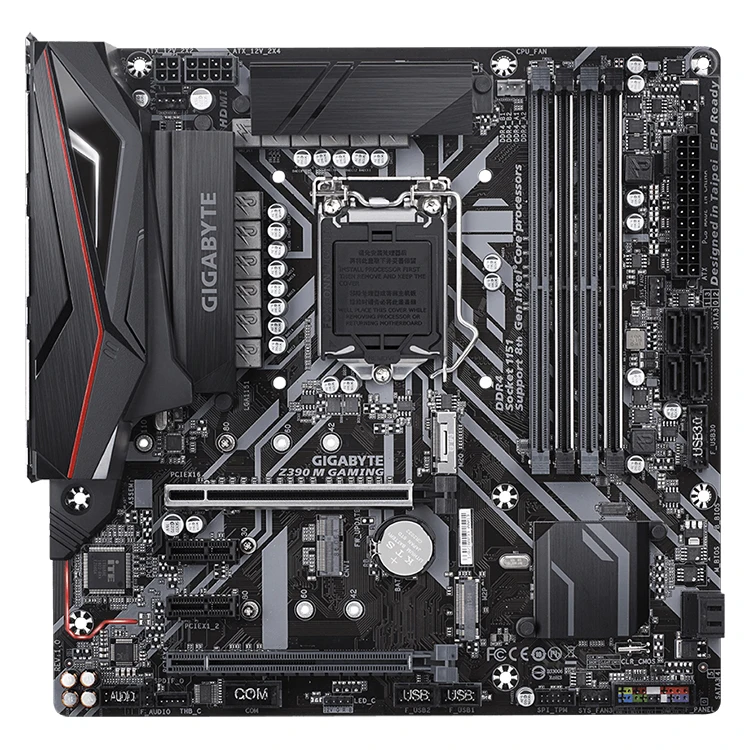

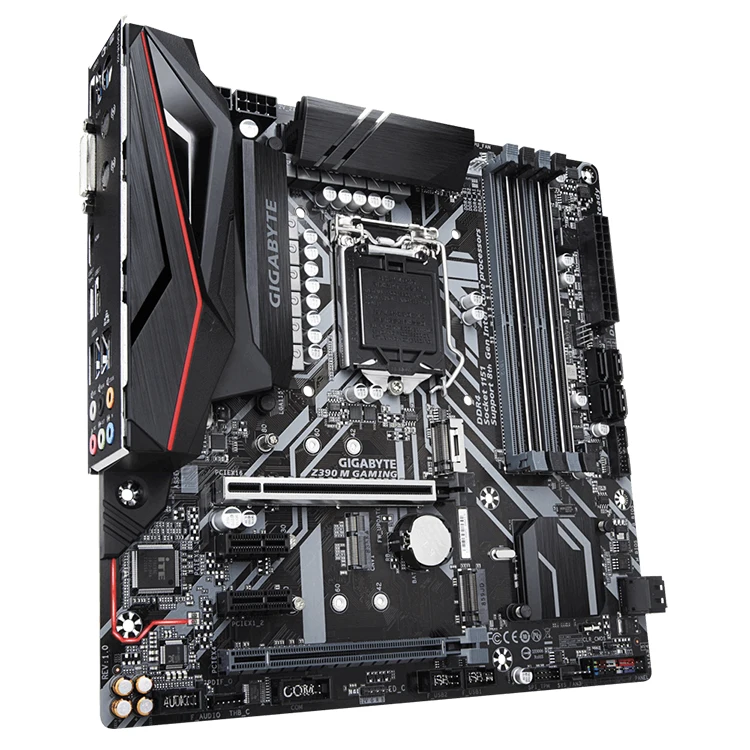

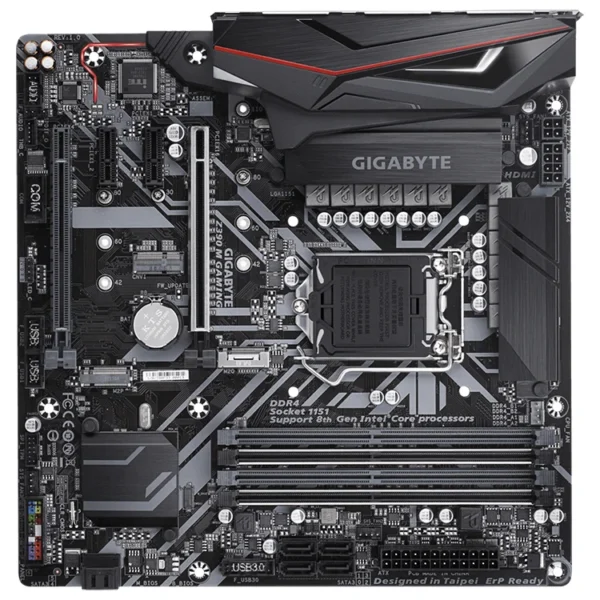

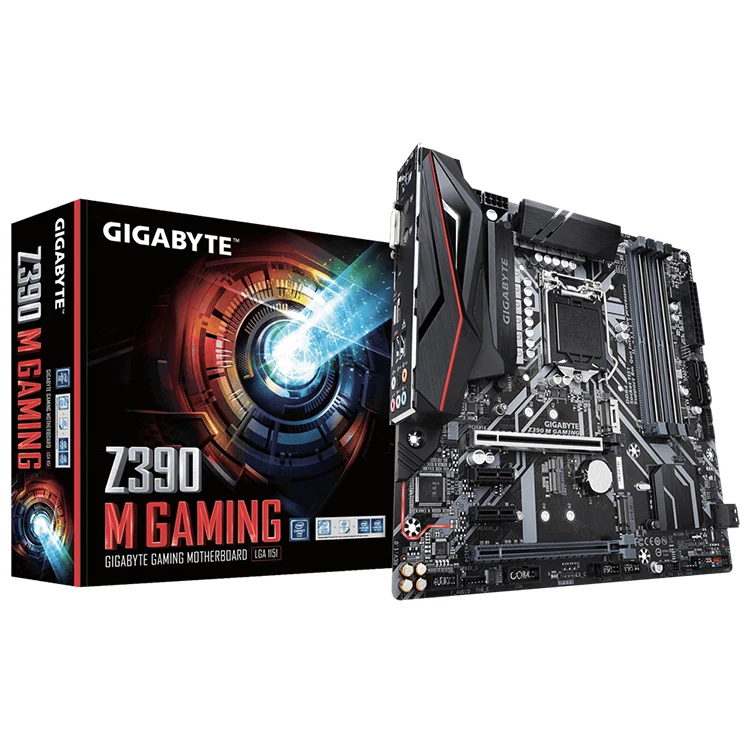

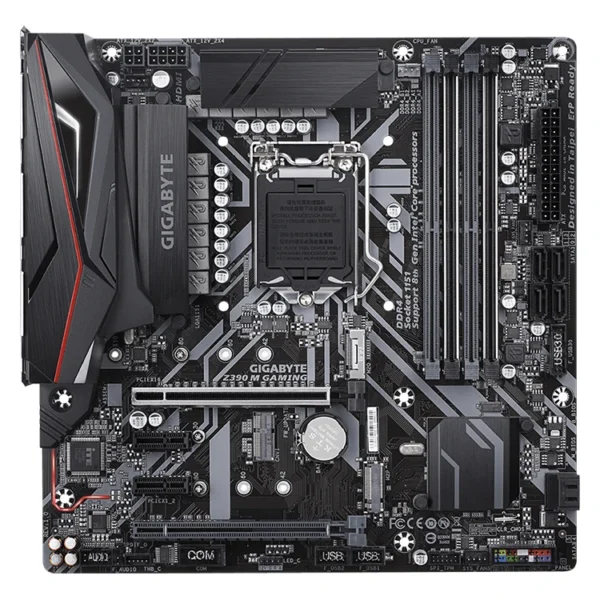

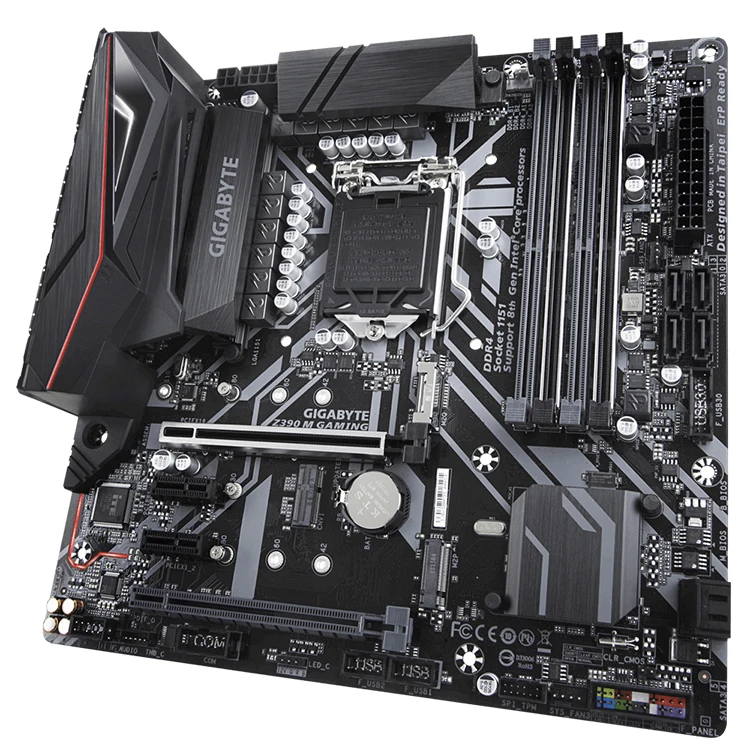

Tarjeta madre/Motherboard | GIGABYTE Z390 M GAMING Intel Z390 | LGA 1151

GIGABYTE Z390 M GAMING with 10+2 Digital PWM Design Intel Z390 Chipset LGA 1151 Ultra Durable Technology Motherboards

Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A + Type-C, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, CEC 2019

• Supports 9th and 8th Gen Intel^® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4
• New 10+2 Phases Digital PWM Design
• High Quality Audio Capacitors
• Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
• Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
• Intel^® Native USB 3.1 Gen2 Type-A + Type-C
• Intel^® GbE LAN with cFosSpeed Internet Accelerator Software
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Support RGB Lighting Effect in Full Colors
• CEC 2019 Ready, Save Power With a Simple Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Lightning-Fast Intel^® Thunderbolt™ 3 AIC Support
• Intel^® Optane™ Memory Ready

• CPU

1.   Support for 9th and 8th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package

2.   L3 cache varies with CPU

(Please refer «CPU Support List» for more information.)

• Chipset

1.   Intel^® Z390 Express Chipset

• Memory

1.   4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed.

2.   Dual channel memory architecture

3.   Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

4.   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6.   Support for Extreme Memory Profile (XMP) memory modules

(Please refer «Memory Support List» for more information.)

• Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

1.   1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

2.   1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Actual support may vary by CPU.

• Audio

1.   Realtek^® ALC892 codec

2.   High Definition Audio

3.   2/4/5.1/7.1-channel

4.   Support for S/PDIF Out

• LAN

1.   Intel^® GbE LAN chip (10/100/1000 Mbit)

• Expansion Slots

1.   1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2.   1 x PCI Express x16 slot, running at x4 (PCIEX4)

3.   2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

4.   1 x M.2 Socket 1 connector for an Intel^® CNVi (CNVI)

• Multi-Graphics Technology

1.   Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

• Storage Interface

Chipset:

1.   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)

2.   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)

3.   6 x SATA 6Gb/s connectors

4.   Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to «1-7 Internal Connectors,» for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready

• USB

Chipset:

1.   1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

2.   1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

3.   6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

4.   4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

1.   1 x 24-pin ATX main power connector

2.   1 x 8-pin ATX 12V power connector

3.   1 x 4-pin ATX 12V power connector

4.   1 x CPU fan header

5.   3 x system fan headers

6.   1 x RGB LED strip header

7.   6 x SATA 6Gb/s connectors

8.   2 x M.2 Socket 3 connectors

9.   1 x front panel header

10.     1 x front panel audio header

11.     1 x S/PDIF Out header

12.     1 x USB 3.1 Gen 1 header

13.     2 x USB 2.0/1.1 headers

14.     1 x Trusted Platform Module (SPI_TPM) header

15.     1 x Thunderbolt™ add-in card connector

16.     1 x serial port header

17.     1 x Clear CMOS jumper

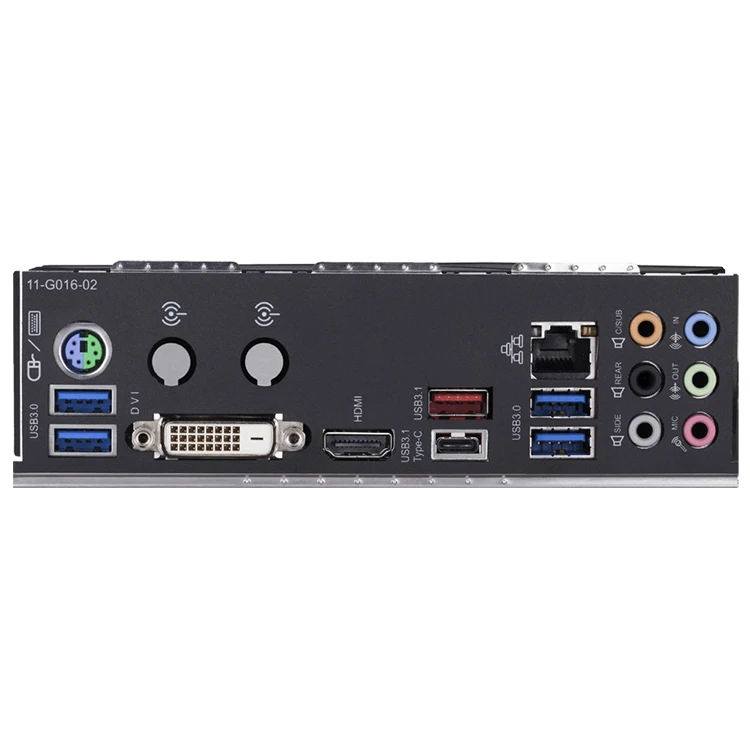

• Back Panel Connectors

1.   1 x PS/2 keyboard/mouse port

2.   1 x DVI-D port

3.   1 x HDMI ports

4.   1 x USB Type-C™ port, with USB 3.1 Gen 2 support

5.   1 x USB 3.1 Gen 2 Type-A port (red)

6.   4 x USB 3.1 Gen 1 ports

7.   1 x RJ-45 port

8.   6 x audio jacks

• I/O Controller

1.   iTE^® I/O Controller Chip

• H/W Monitoring

1.   Voltage detection

2.   Temperature detection

3.   Fan speed detection

4.   Overheating warning

5.   Fan fail warning

6.   Fan speed control
*Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

1.   2 x 128 Mbit flash

2.   Use of licensed AMI UEFI BIOS

3.   Support for DualBIOS™

4.   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1.   Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner

2.   Support for Q-Flash

3.   Support for Xpress Install

• Bundled Software

1.   Norton^® Internet Security (OEM version)

2.   cFosSpeed

• Operating System

1.   Support for Windows 10 64-bit

• Form Factor

1.   Micro ATX Form Factor; 24.4cm x 24.4cm
