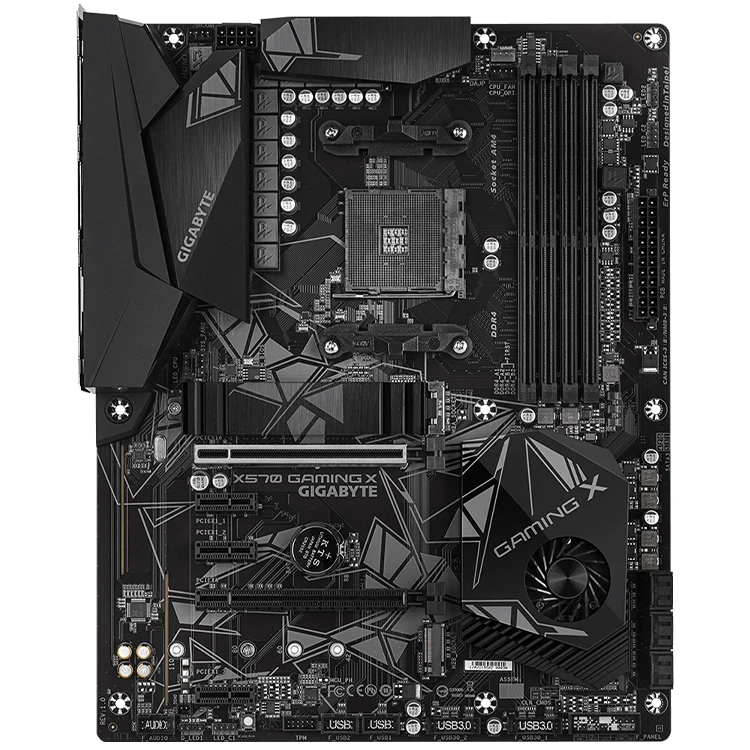

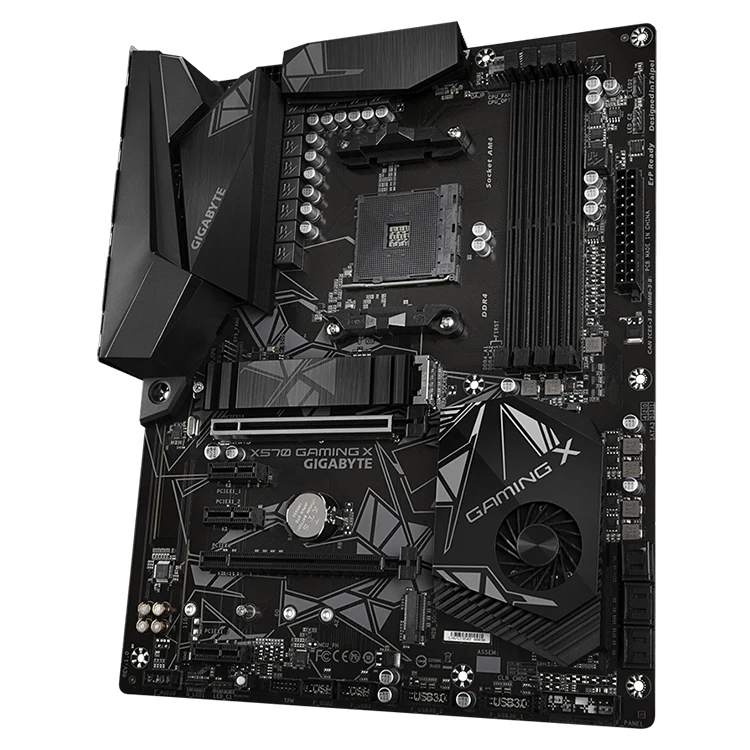

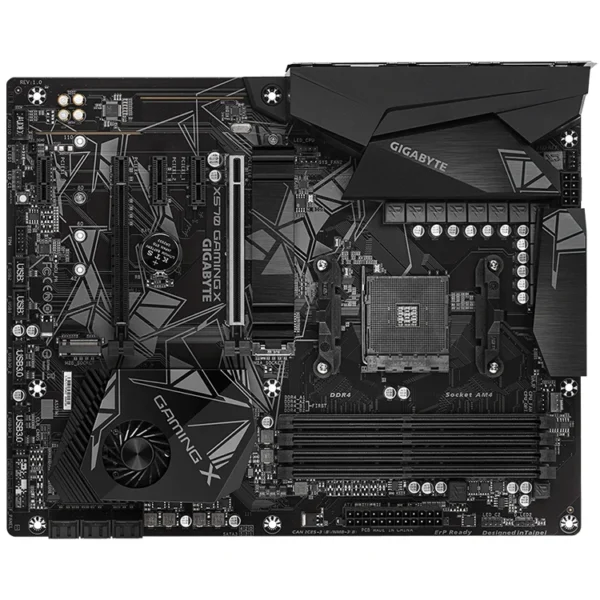

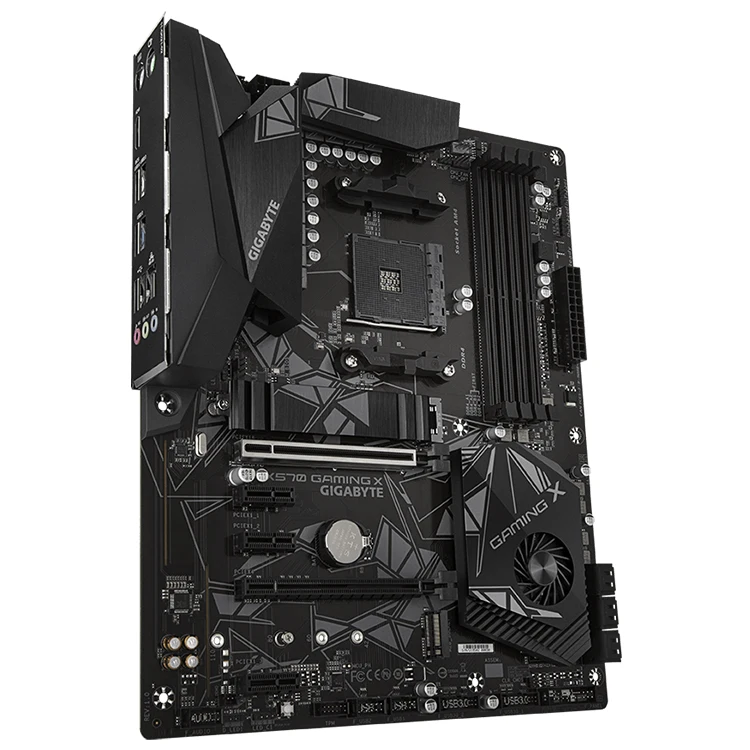

Tarjeta madre/Motherboard | GIGABYTE X570 GAMING X AMD X570

GIGABYTE X570 GAMING X with AMD X570 Chipset Supports 3rd 2nd Gen Ryzen Processors Gaming Motherboard

AMD X570 GAMING Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2, M.2 Thermal Guard, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0, RGB Fusion 2.0

• Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 10+2 Phases Digital VRM Solution
• Advanced Thermal Design with Enlarge Heatsink
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with one Thermal Guard
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• GIGABYTE Gaming GbE LAN with Bandwidth Management
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Integrated I/O Shield Armor & HDMI 2.0 support
• Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card

• CPU
1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors

(Please refer «CPU Support List» for more information.)

• Chipset
1. AMD X570
• Memory
1. 3rd Generation AMD Ryzen™ processors:
   Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
   Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
   * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer «Memory Support List» for more information.)

• Onboard Graphics

Integrated Graphics Processor:

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB

Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.

• Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1-channel
• LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots

Integrated in the CPU (PCIEX16):
· 3rd Generation AMD Ryzen™ processors:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

· 2nd Generation AMD Ryzen™ processors:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)
2. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
   * For 3rd Generation AMD Ryzen™ processors only.
3. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
   * For 3rd Generation AMD Ryzen™ processors only.
• Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

• Storage Interface

Integrated in the CPU (M2A_SOCKET):
· 3rd Generation AMD Ryzen™ processors:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

· 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET):

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
   * For 3rd Generation AMD Ryzen™ processors only.
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
• USB

Integrated in the CPU:

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 2 x system fan headers
6. 1 x CPU cooler LED strip/RGB LED strip header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 6 x SATA 6Gb/s connectors
10. 2 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 2 x USB 3.2 Gen 1 headers
14. 2 x USB 2.0/1.1 headers
15. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
16. 1 x Clear CMOS jumper
17. 1 x Q-Flash Plus button

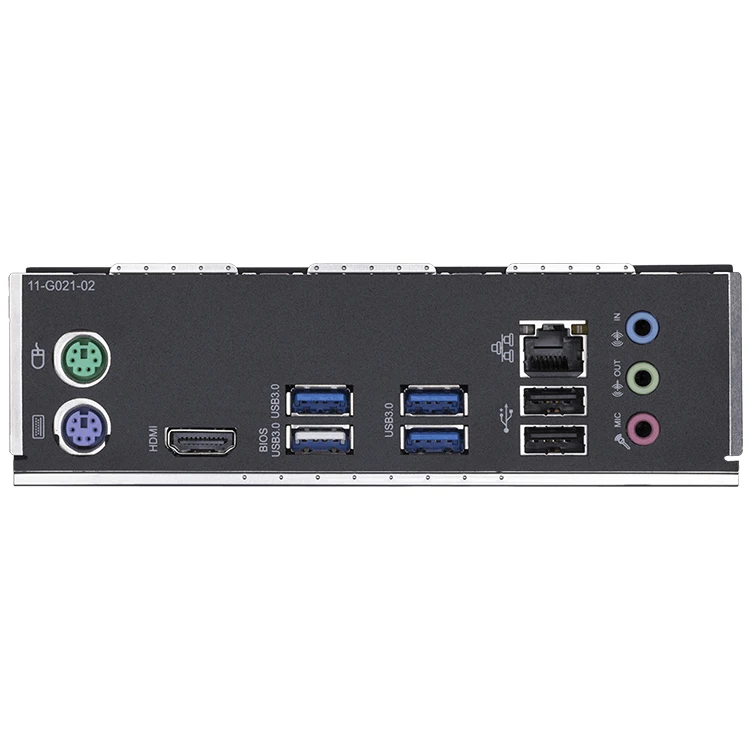

• Back Panel Connectors
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
• I/O Controller
1. iTE^® I/O Controller Chip
• H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart Survey
   System Information Viewer
   USB Blocker
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
• Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
• Operating System
1. Support for Windows 10 64-bit
• Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
