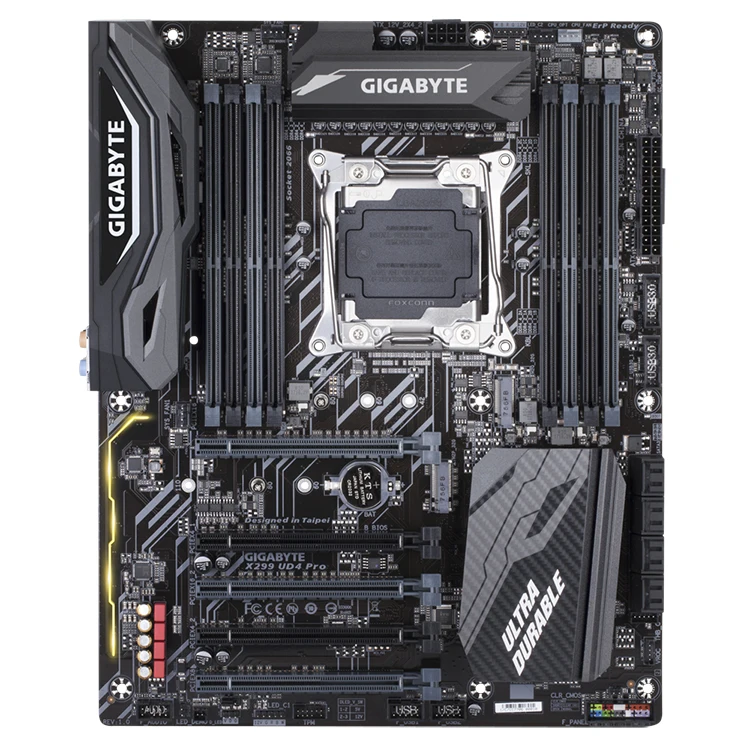

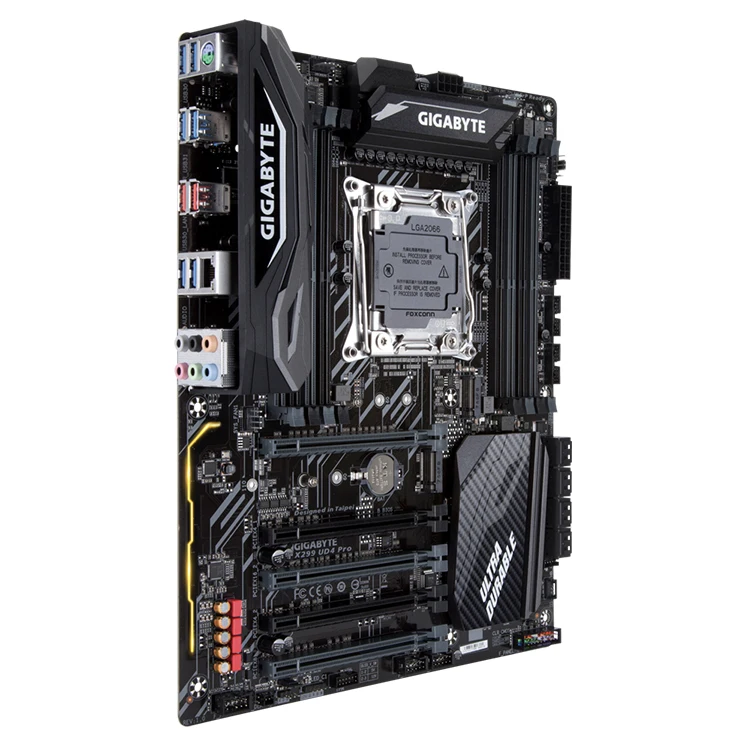

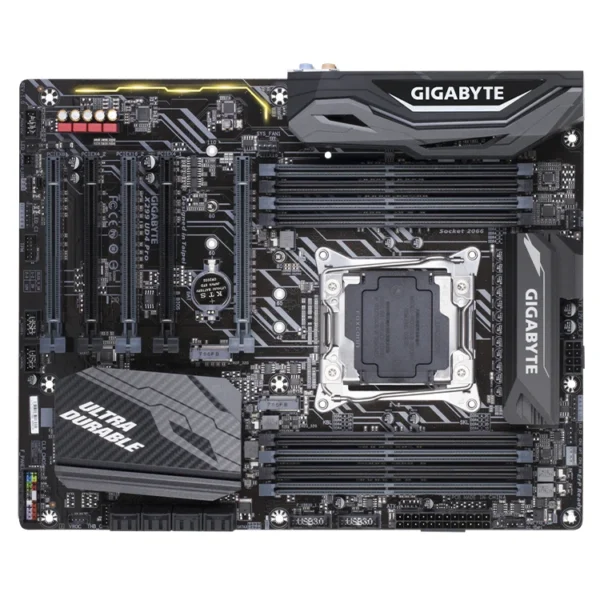

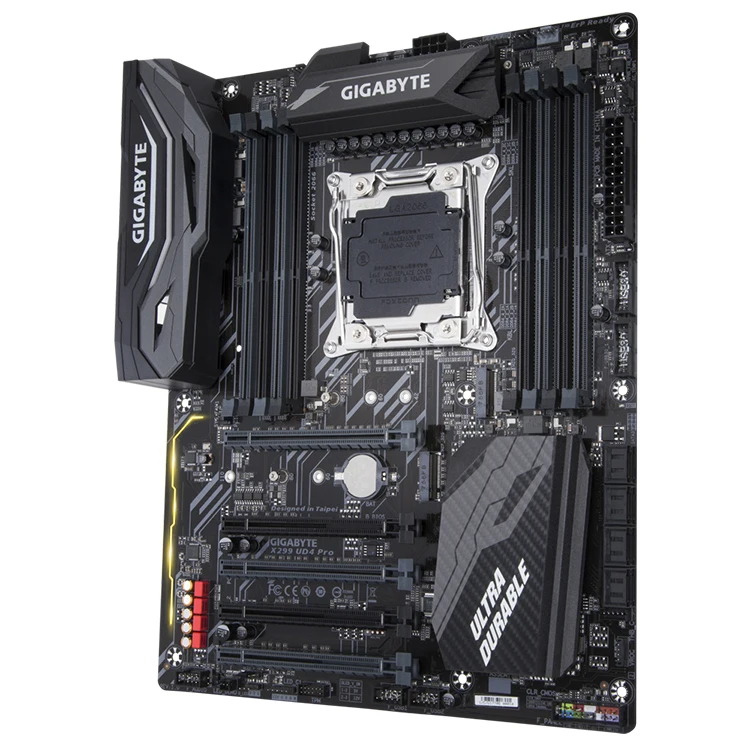

Tarjeta madre/Motherboard | GIGABYTE X299 UD4 Pro X299 | LGA 2066

INTEL GIGABYTE X299 UD4 Pro with X299 Chipset LGA 2066 Socket Supports Intel Core X-Series CPU Gaming Motherboard

Intel X299 Ultra Durable motherboard with RGB Fusion, Digital LED strip support, Dual M.2, 120dB SNR ALC1220, Intel Gaming LAN, USB 3.1 gen 2 Type-A

• Supports Intel^® Core™ X-Series Processor Family
• Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
• Intel^® Optane™ Memory Ready
• Intel^® VROC ready
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-A
• 3-Way Graphics Support
• Server-Class Digital Power Design
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor
• RGB FUSION support Digital LED and RGBW Light Strips
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
• NVMe PCIe Gen3 x4 U.2 support by optional adaptor
• Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
• Anti-Sulfur Resistor Design
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Lightning-Fast Intel^® Thunderbolt™ 3 AIC Support
• GIGABYTE UEFI DualBIOS™
• APP Center Including EasyTune™ and Cloud Station™ Utilities

• CPU

1.   Support for Intel^® Core™ X series processors in the LGA2066 package

2.   L3 cache varies with CPU

(Please refer «CPU Support List» for more information.)

• Chipset

1.   Intel^® X299 Express Chipset

• Memory

1.   8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).

2.   4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
* Supported when using a 16-lane CPU (4-core).

3.   4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).

4.   Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core).

5.   Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

6.   Support for non-ECC Un-buffered DIMM memory modules

7.   Support for Extreme Memory Profile (XMP) memory modules

(Please refer «Memory Support List» for more information.)

• Audio

1.   Realtek^® ALC1220 codec

2.   High Definition Audio

3.   2/4/5.1/7.1-channel

4.   Support for S/PDIF Out

• LAN

1.   Intel^® GbE LAN chip (10/100/1000 Mbit)

• Expansion Slots

1.   2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

2.   1 x PCI Express x16 slot, running at x8 (PCIEX8)

3.   2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to «1-6 Setting up AMD CrossFire™/NVIDIA^® SLI™ Configuration,» for the installation notices for the PCI Express x16 slots.

X299 PCIE OPTIMAL PERFORMANCE TOOL

• Multi-Graphics Technology

1.   Support for NVIDIA^® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA^® SLI™ technologies

2.   Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies

• Storage Interface

Chipset:

1.   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)

2.   1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)

3.   8 x SATA 6Gb/s connectors

4.   Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to «1-9 Internal Connectors,» for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready
Intel^® VROC Ready

• USB

Chipset+ASMedia^® USB 3.1 Gen 2 Controller:

1.   2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel

Chipset:

2.   10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

3.   4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

1.   1 x 24-pin ATX main power connector

2.   1 x 8-pin ATX 12V power connector

3.   1 x CPU fan header

4.   1 x water cooling CPU fan header

5.   2 x system fan headers

6.   1 x 3 Amp fan/water cooling pump header

7.   1 x digital LED strip header

8.   1 x digital LED strip power select jumper

9.   2 x RGB (RGBW) LED strip extension cable headers

10.     2 x M.2 Socket 3 connectors

11.     8 x SATA 6Gb/s connectors

12.     1 x Intel^® VROC Upgrade Key header

13.     1 x front panel header

14.     1 x front panel audio header

15.     1 x S/PDIF Out header

16.     2 x USB 3.1 Gen 1 headers

17.     2 x USB 2.0/1.1 headers

18.     1 x Thunderbolt™ add-in card connector

19.     1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

20.     1 x temperature sensor header

21.     1 x Clear CMOS jumper

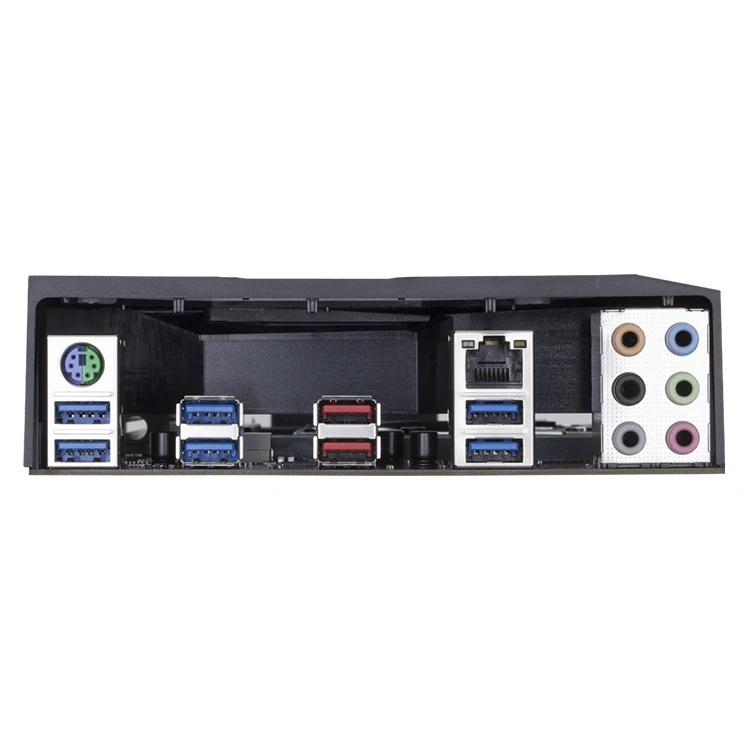

• Back Panel Connectors

1.   1 x PS/2 keyboard/mouse port

2.   2 x USB 3.1 Gen 2 Type-A ports (red)

3.   6 x USB 3.1 Gen 1 ports

4.   1 x RJ-45 port

5.   6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

• I/O Controller

1.   iTE^® I/O Controller Chip

• H/W Monitoring

1.   Voltage detection

2.   Temperature detection

3.   Fan speed detection

4.   Water cooling flow rate detection

5.   Overheating warning

6.   Fan fail warning

7.   Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install

• BIOS

1.   2 x 128 Mbit flash

2.   Use of licensed AMI UEFI BIOS

3.   Support for DualBIOS™

4.   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1.   Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner

2.   Support for Q-Flash

3.   Support for Xpress Install

• Bundled Software

1.   Norton^® Internet Security (OEM version)

2.   cFosSpeed

• Operating System

1.   Support for Windows 10 64-bit

• Form Factor

1.   ATX Form Factor; 30.5cm x 24.4cm
