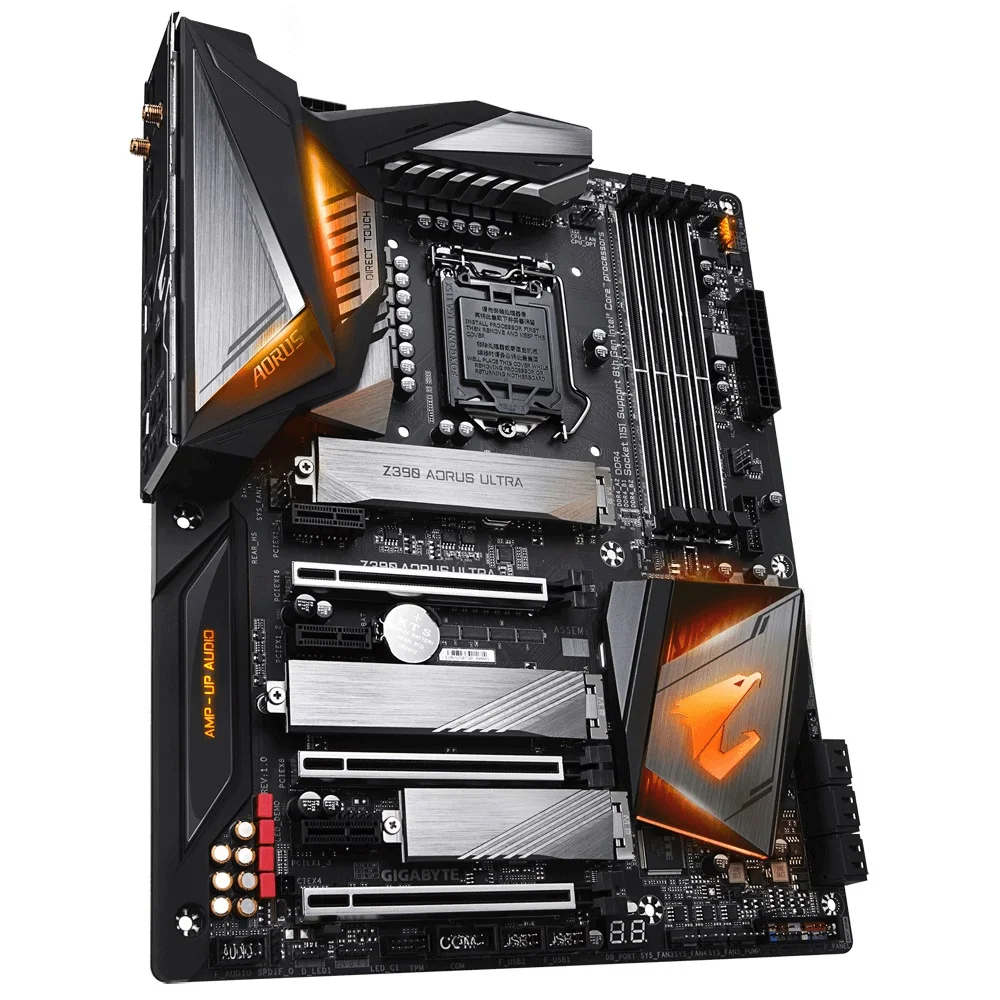

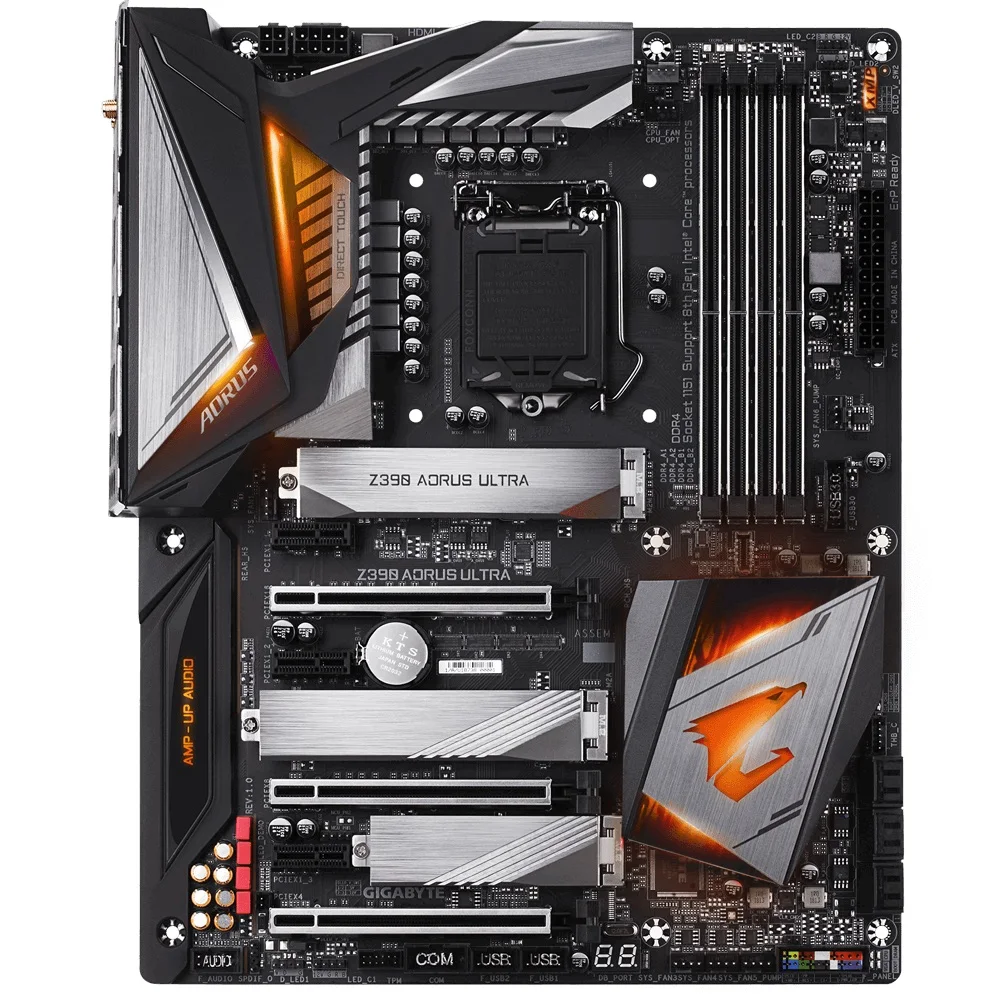

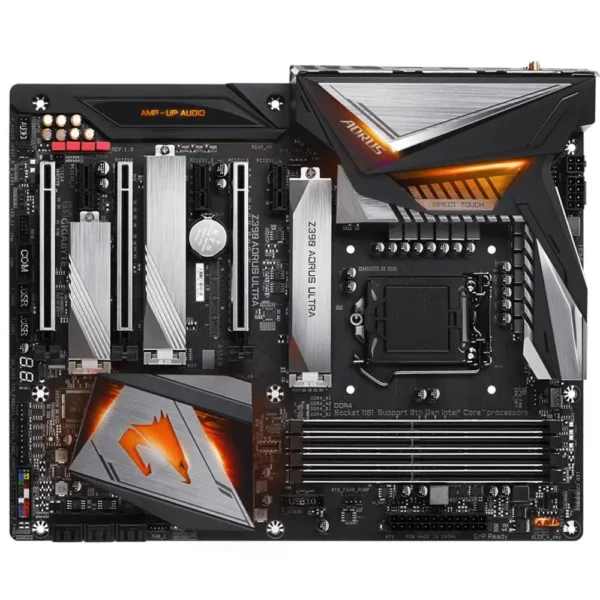

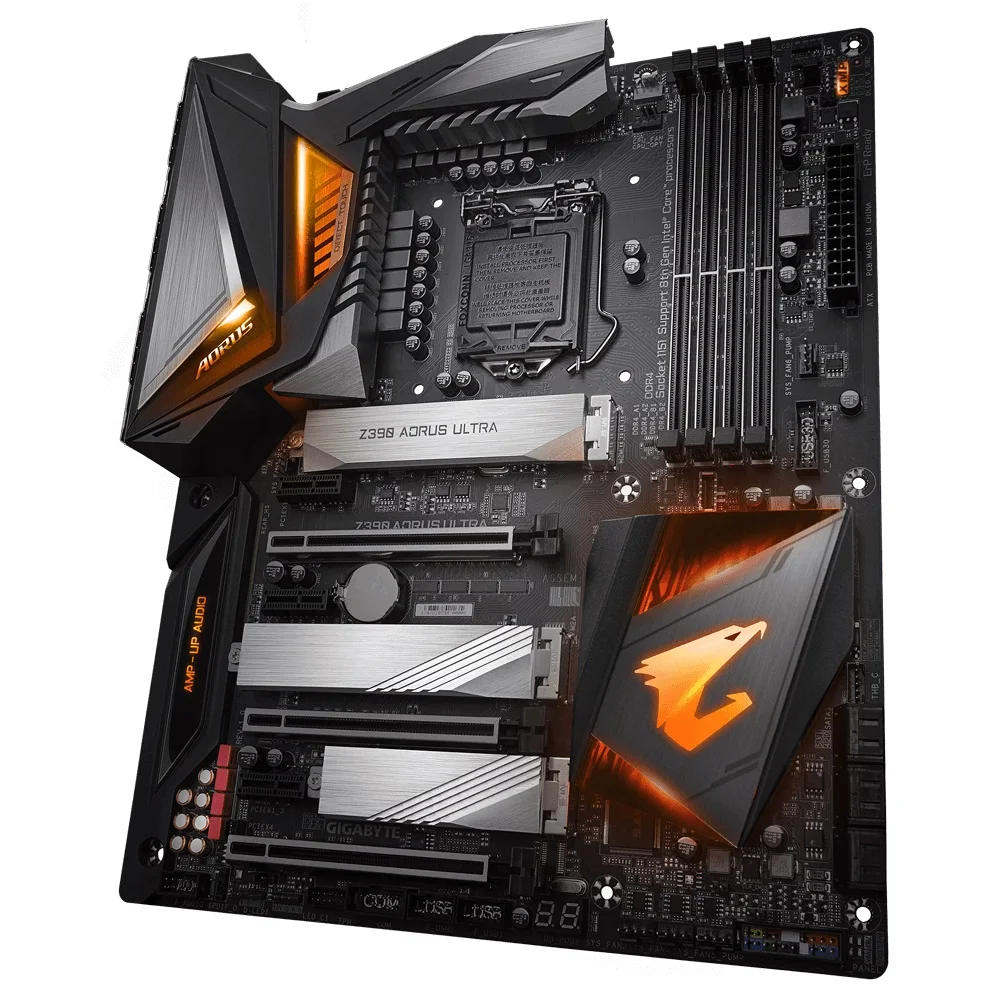

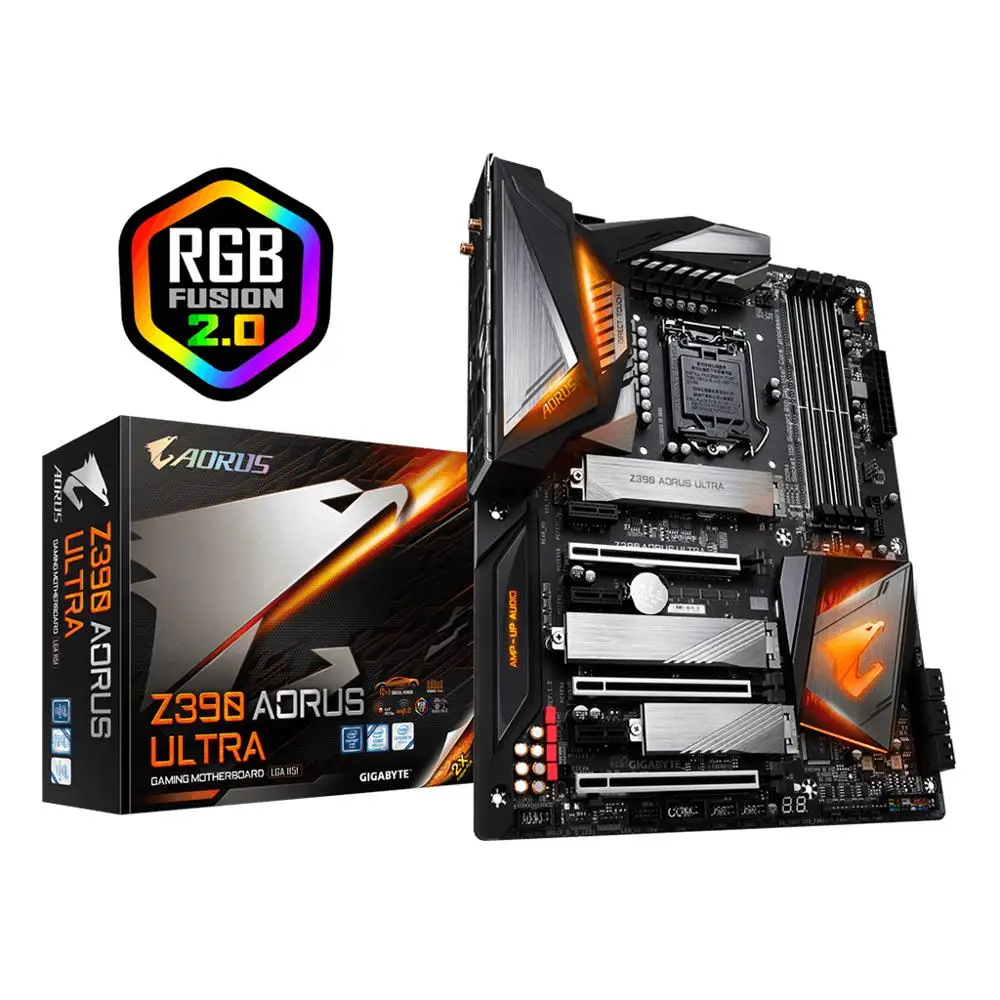

GIGABYTE Intel Z390 AORUS ULTRA Used Gaming Motherboard with Z390 Chipset Supports 9th and 8th Gen Intel Core Processors

Intel Z390 AORUS Motherboard with 12+1 Phases Digital VRM, Direct Touch Heatpipe, RGB Fusion, 802.11ac Wi-Fi, Triple M.2 with Thermal Guards, Intel® GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-C

• Supports 9th and 8th Gen Intel^® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel^® Optane™ Memory Ready
• 12+1 Phases Digital VRM Solution with DrMOS
• Advanced Thermal Design with Direct Touch Heatpipe
• Onboard Intel^® CNVi 802.11ac 2×2 Wave 2 Wi-Fi
• ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
• Intel^® Gigabit LAN with cFosSpeed
• RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Front USB 3.1 Gen 2 Type-C™ Header
• Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guards
• USB DAC-UP 2 with Adjustable Voltage
• CEC 2019 Ready, Save Power With a Simple Click
• Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design

• CPU

1.   Support for 9th and 8th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package

2.   L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)

• Chipset

1.   Intel^® Z390 Express Chipset

• Memory

1.   4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed.

2.   Dual channel memory architecture

3.   Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

4.   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6.   Support for Extreme Memory Profile (XMP) memory modules

(Please refer to “Memory Support List” for more information.)

• Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

1.   1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Actual support may vary by CPU

• Audio

1.   Realtek^® ALC1220-VB codec
* The back panel line out jack supports DSD audio.

2.   High Definition Audio

3.   2/4/5.1/7.1-channel

4.   Support for S/PDIF Out

• LAN

1.   Intel^® GbE LAN chip (10/100/1000 Mbit)

• Wireless Communication module

1.   Intel^® CNVi interface Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

2.   BLUETOOTH 5

3.   Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

• Expansion Slots

1.   1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2.   1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

3.   1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.

4.   3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

5.   1 x M.2 Socket 1 connector for an Intel^® CNVi wireless module only (CNVI)

• Multi-Graphics Technology

1.   Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies

2.   Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

• Storage Interface

Chipset:

1.   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)

2.   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)

3.   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)

4.   6 x SATA 6Gb/s connectors

5.   Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-8 Internal Connectors,” for the installation notices for the PCIEX4, M.2, and SATA connectors.

Intel^® Optane™ Memory Ready

• USB

Chipset:

1.   1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header

2.   1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

3.   3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel

4.   4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

5.   8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

1.   1 x 24-pin ATX main power connector

2.   1 x 8-pin ATX 12V power connector

3.   1 x 4-pin ATX 12V power connector

4.   1 x CPU fan header

5.   1 x water cooling CPU fan header

6.   4 x system fan headers

7.   2 x system fan/water cooling pump headers

8.   2 x digital LED strip headers

9.   2 x digital LED strip power select jumpers

10.     2 x RGB LED strip headers

11.     6 x SATA 6Gb/s connectors

12.     3 x M.2 Socket 3 connectors

13.     1 x front panel header

14.     1 x front panel audio header

15.     1 x S/PDIF Out header

16.     1 x USB Type-C™ port, with USB 3.1 Gen 2 support

17.     1 x USB 3.1 Gen 1 header

18.     2 x USB 2.0/1.1 headers

19.     1 x Thunderbolt™ add-in card connector

20.     1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

21.     1 x serial port header

22.     1 x Clear CMOS jumper

23.     2 x temperature sensor headers

• Back Panel Connectors

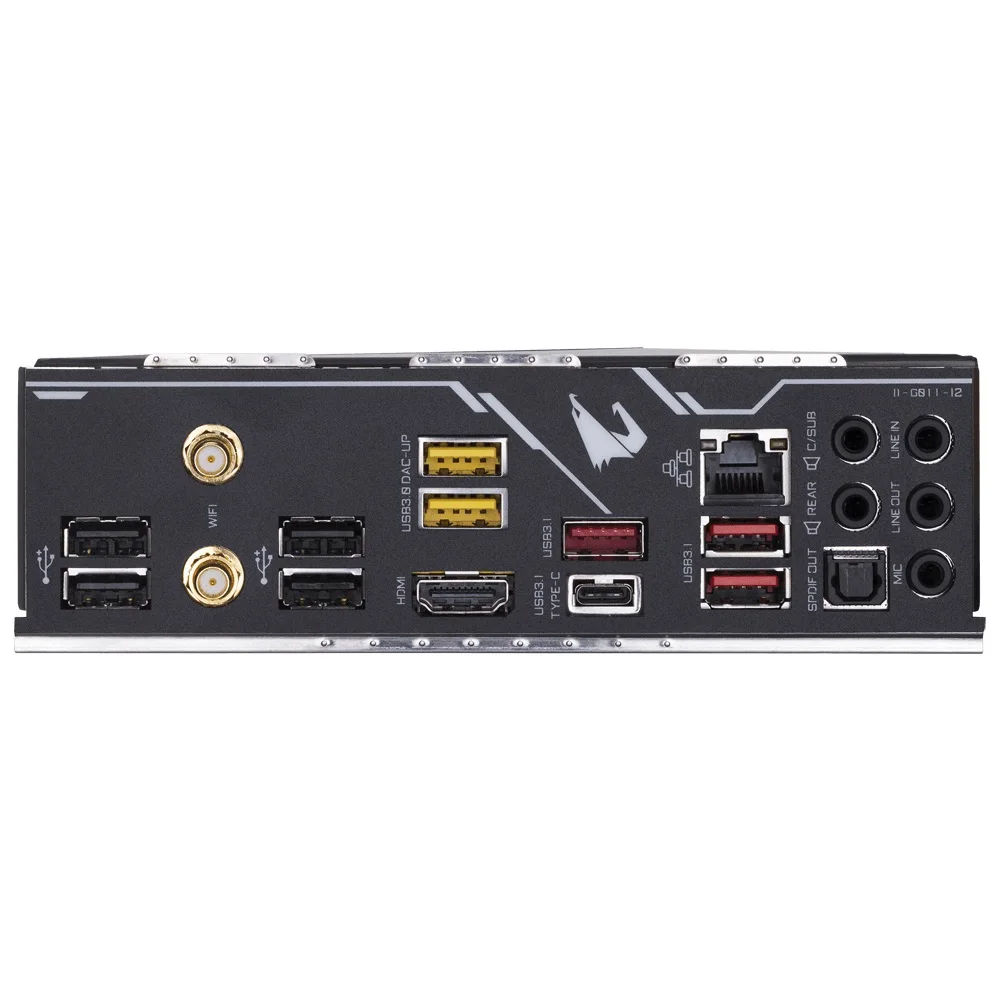

1.   1 x HDMI port

2.   1 x USB Type-C™ port, with USB 3.1 Gen 2 support

3.   3 x USB 3.1 Gen 2 Type-A ports (red)

4.   2 x USB 3.1 Gen 1 ports

5.   4 x USB 2.0/1.1 ports

6.   1 x RJ-45 port

7.   2 x SMA antenna connectors (2T2R)

8.   1 x optical S/PDIF Out connector

9.   5 x audio jacks

• I/O Controller

1.   iTE^® I/O Controller Chip

• H/W Monitoring

1.   Voltage detection

2.   Temperature detection

3.   Fan speed detection

4.   Water cooling flow rate detection

5.   Overheating warning

6.   Fan fail warning

7.   Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

1.   2 x 128 Mbit flash

2.   Use of licensed AMI UEFI BIOS

3.   Support for DualBIOS™

4.   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1.   Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
USB DAC-UP 2

2.   Support for Q-Flash

3.   Support for Xpress Install

• Bundled Software

1.   Norton^® Internet Security (OEM version)

2.   cFosSpeed

• Operating System

1.   Support for Windows 10 64-bit

• Form Factor

1.   ATX Form Factor; 30.5cm x 24.4cm
