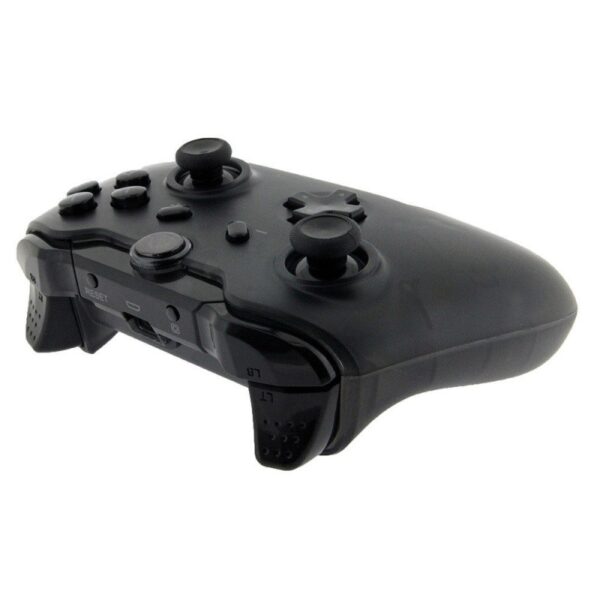

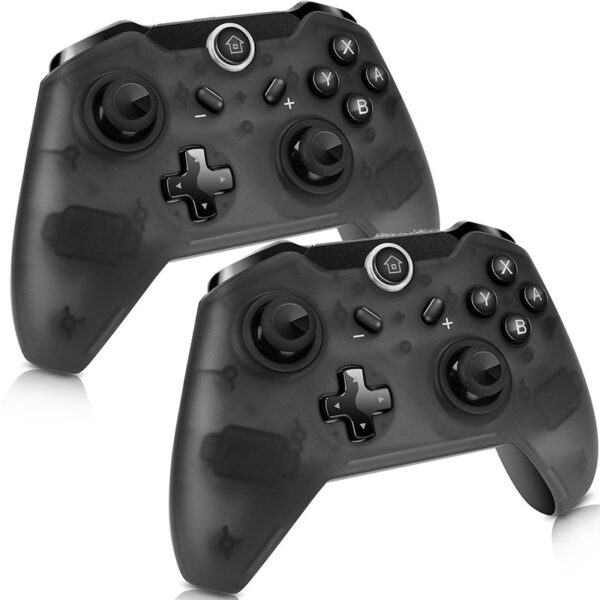

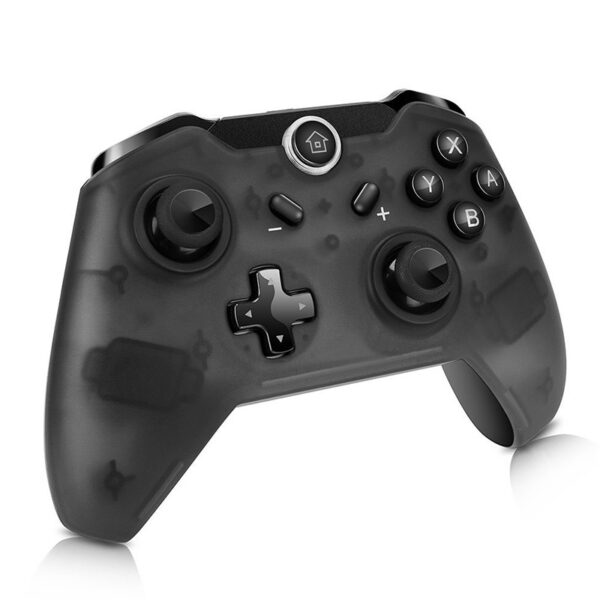

Gamepad compatible with Switch game console Pro wireless Bluetooth controller

1. Handle features

1) This Pro controller is compatible with Switch game consoles and also supports Windows computers.

2) No need to load any driver, the handle can be used after connected to the Switch host.

3) Wireless Bluetooth V3.0 connection, strong anti-interference ability, stable connection signal.

4) One-button connection mode, easy to operate; supports screenshot and storage function.

5) Built-in 400 mAh polymer lithium battery, which can be used for about 5 hours after being fully charged.

6) The built-in gyroscope of this handle supports motion sensing function; the built-in dual motor supports dual shock function;

7) Up to 4 wireless controllers can be connected to the host at the same time.

8) The game can be played normally when the controller is charged.

9) The ergonomic design and lightweight handle construction make players feel comfortable.

10) This controller can be upgraded by updating the software by connecting to a computer.

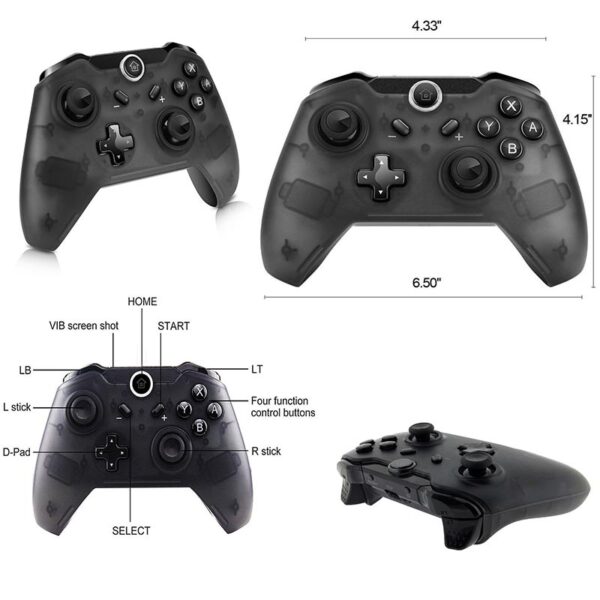

Second, the key introduction

1) HOME button * 1: turn on the handle or execute the command of the host.

2) Direction keys * 1 group: up, down, left, right. Easy operation in eight directions.

3) Function control keys * 4: A, B, Y, X. Button design, finger touch operation is more sensitive and fast.

4) Left and right joysticks * 2: Newly designed 3D joysticks, 360-degree precision operation.

5) 4 function keys: LB, RB, LT, RT. Brand new trigger and key switch design, quick response.

6) Screen capture key * 1: Click this key in the game to take a screenshot and save the current screen.

7) Reset button * 1: Press this button to turn off the power of the handle, disconnect the handle from the host; reset.

Third, the machine guide

1) Connect the Switch host via Bluetooth wirelessly:

A. Connect the handle to the host for the first time: turn on the Switch host, on the main menu interface of the host, touch «handle» → «change grip» with your finger to enter the host pairing mode interface; on the handle, long press the «HOME» button Turn on the handle in 4 seconds, the four LED lights will flash slowly and first, and will flash in a fast cycle after 4 seconds, and enter the search state. When one (or more) LEDs are on, the handle and the host are successfully paired. Press the «B» key to return to the main menu interface.

B. Connect the handle to the host again: short press the HOME button to turn on the handle, the handle is automatically connected to the host.

C. Connect the controller to the host:

a. In the sleep state of the handle, short press the HOME button to wake up the handle, the handle and the host will automatically connect back.

b. In the sleep state of the host, first press the power button of the host to wake up the host, then short press the HOME button of the handle to connect back to the host (in the sleep state of the host, directly pressing any button of the handle cannot wake up the host).

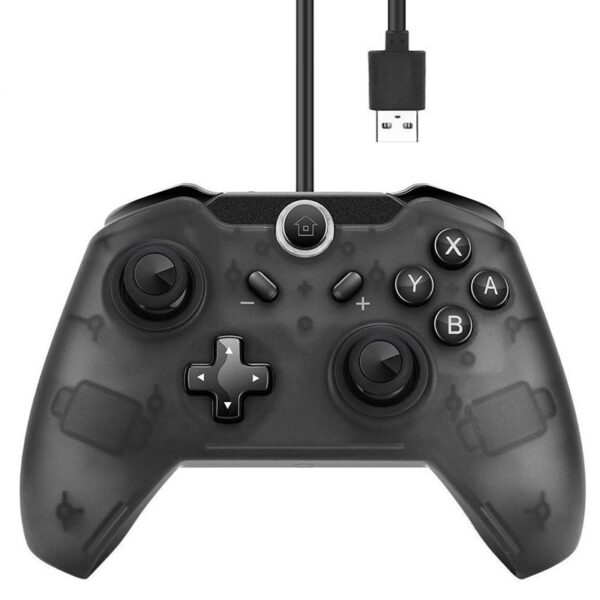

2) Connect the Switch host via USB cable:

On the main menu page of the Switch host, click Settings → Handle and sensor → Pro handle wired connection to open the wired communication function of the Pro host of the Switch host; use a USB cable to connect the handle to the USB port of the Switch host base, the LED4 flashes slowly; LED1 on the handle flashes slowly after connecting.

3) Connect the Windows computer via USB cable:

First you need to download and install the X-360 driver to the Windows computer; then connect the handle to the computer with a USB cable, the four LEDs on the handle flash slowly; after the handle driver is automatically installed, LED1 and LED4 on the handle flash slowly, the handle is be usable. Support X-360 mode games. Please find the download method of X-360 driver on the Internet.

Remarks: In X-360 mode with wired connection to the computer, there is vibration function and no motion sensing function.

4. LED instructions

1) The four LEDs flash rapidly and cyclically: the controller is searching for Bluetooth device pairing; the controller is connecting to the host via Bluetooth code pairing.

2) The LED flashes quickly: the battery voltage of this handle is lower than 3.6V; when it is lower than 3.4V, the handle automatically shuts down and cannot be turned on.

3) The LED is always on: the handle and the host are connected normally via Bluetooth.

4) LED flashes slowly: the handle is connected to the host through a USB cable; when the handle is connected to the charger for charging, the four LEDs flash slowly at the same time, and when fully charged, the four LEDs go out.

Remarks:

1. This controller is mainly used to play games of Switch game consoles. If you don’t have a Switch host, you only want to use this controller to play computer games. It is recommended not to buy this controller, please buy a special controller for computers! This controller does not support Android and MAC OS devices.

2. The charging interface of this handle is TYPE-C interface, and it is equipped with a charging cable of TYPE-C interface.

3. This controller has been compatible with the latest version of the Switch game console at the time before leaving the factory. If the Switch host is upgraded again, if there is no connection to the host, our factory provides upgrade software to upgrade the handle.

4. The packaging comes with six-language instructions (English, French, German, Spanish, Italian, Japanese). If you need Chinese instructions, please communicate online in time.

5. The connection mode of this handle is one-key connection.
